WILDENAccu-Flo
WILDEN 02-12854
Ordering configuration

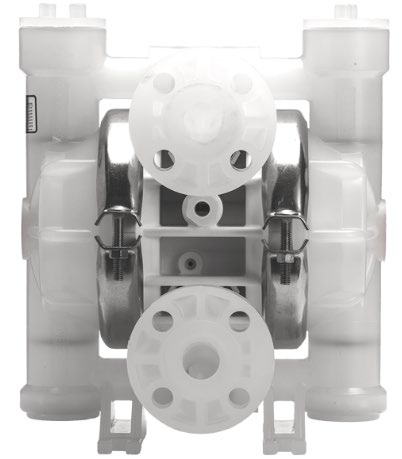

A2B/PKPPP/BNS/BN/PBN/0509WILDEN 02-12854 is a 1-inch air-operated diaphragm pump in the Accu-Flo series. This configuration uses a polypropylene wetted housing and Buna-N diaphragms. The complete ordering configuration is A2B/PKPPP/BNS/BN/PBN/0509.
- Nominal port size
- 1 inch
- Wetted housing
- polypropylene
- Diaphragm material
- Buna-N
THE CONFIGURATION
Know the pump.
Construction & fluid path
The pump has clamped construction. Fluid connection specification: ANSI flanged. Check ball material: Buna-N. Valve seat material: polypropylene.
TECHNICAL DATA
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | WILDEN |
|---|---|
| Model / order number | 02-12854 |
| Series | Accu-Flo |
| Full configuration | A2B/PKPPP/BNS/BN/PBN/0509 |
| Nominal port size | 1 inch |
| Wetted housing | polypropylene |
| Diaphragm material | Buna-N |
| Drive type | Pneumatic |
| Construction | Clamped |
| Connection standard | ANSI |
| Connection type | Flanged |
| Check ball material | Buna-N |
| Valve seat material | polypropylene |
Performance
| Max Diameter Solids (in.) | 0.13 |
|---|---|
| Min Operating Temperature (°F) | 32 |
| Max Operating Temperature (°F) | 175 |
| Self Priming | YES |
Materials & construction
| Technical Construction | CLAMPED |
|---|---|
| Wetted Path Material | POLYPROPYLENE |
| Diaphragm Design | TRADITIONAL |
| Diaphragm Stroke | Full-Stroke |
| Valve Type | VALVE BALL |
| Valve Material | Buna-N |
| O-ring / gasket material | Buna-N |
| Outer Piston Materials | PVDF |
| Air Side Material | POLYPROPYLENE |
| Hardware Material | STAINLESS STEEL |
| Muffler Material | Bronze |
| Construction Details | 0509 |
Connections
| Nominal fluid connection size (in.) | 1 |
|---|---|
| Inlet Size (in.) | 1 |
| Inlet Orientation | CENTER SWIVEL |
| Discharge Size (in.) | 1 |
| Discharge Orientation | CENTER SWIVEL |
Dimensions & weight
| Shipping Weight (lbs) | 20 |
|---|---|
| Listed pump weight (kg) | 9.072 |
Additional specifications
| Product family | ELECTRONIC CONTROLLED |
|---|---|
| Sub Series | Accu-Flo™ |
| Air-system service kit | NAK |
| Wetted-part service kit | 02-9805-52 |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
