WILDENAccu-Flo
WILDEN 00-10026
Ordering configuration

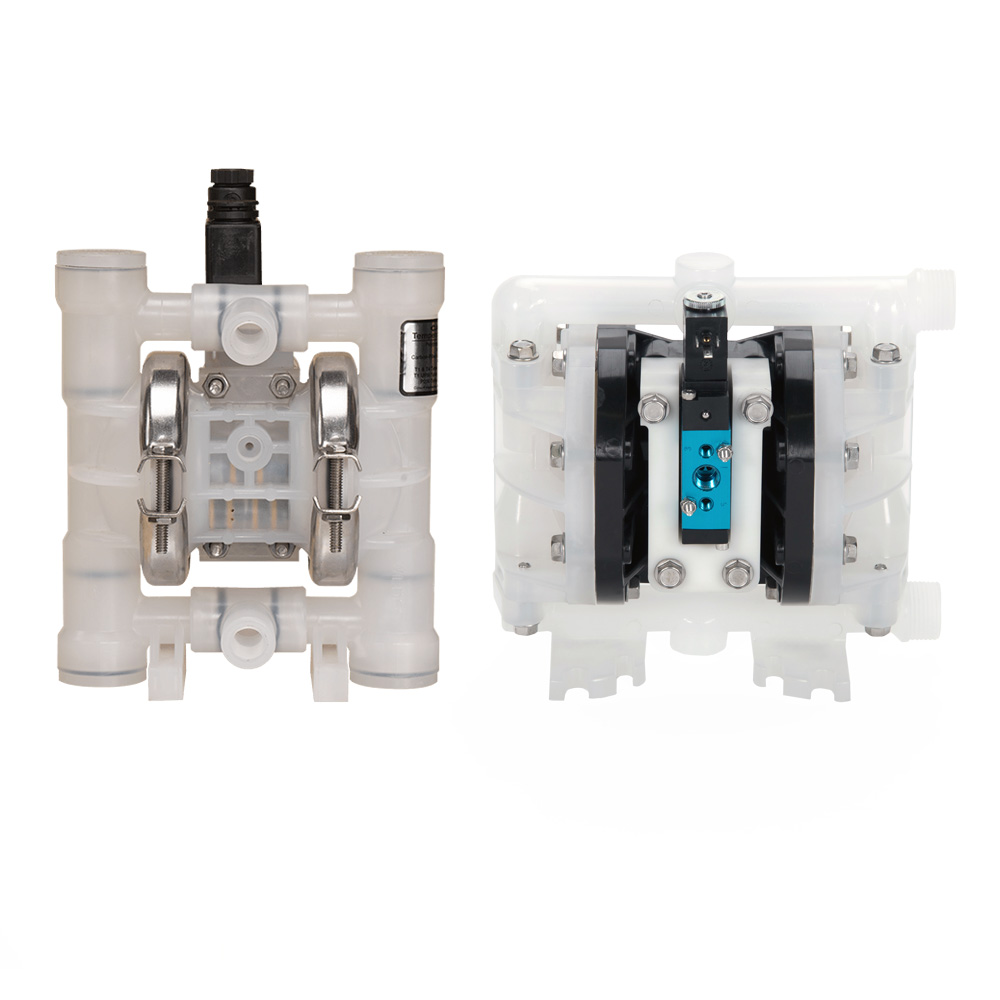

A.025P/KKPPP/WFS/TF/KWF/0150WILDEN 00-10026 is a 0.25-inch air-operated diaphragm pump in the Accu-Flo series. This configuration uses a PVDF wetted housing and Santoprene® diaphragms. The complete ordering configuration is A.025P/KKPPP/WFS/TF/KWF/0150.
- Nominal port size
- 0.25 inch
- Wetted housing
- PVDF
- Diaphragm material
- Santoprene®
THE CONFIGURATION
Know the pump.
Construction & fluid path
The pump has clamped construction. Fluid connection specification: NPT threaded. Check ball material: PTFE. Valve seat material: PVDF.
TECHNICAL DATA
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | WILDEN |
|---|---|
| Model / order number | 00-10026 |
| Series | Accu-Flo |
| Full configuration | A.025P/KKPPP/WFS/TF/KWF/0150 |
| Nominal port size | 0.25 inch |
| Wetted housing | PVDF |
| Diaphragm material | Santoprene® |
| Drive type | Pneumatic |
| Construction | Clamped |
| Connection standard | NPT |
| Connection type | Threaded |
| Check ball material | PTFE |
| Valve seat material | PVDF |
Performance
| Max Diameter Solids (in.) | 0.02 |
|---|---|
| Min Operating Temperature (°F) | 40 |
| Max Operating Temperature (°F) | 175 |
| Self Priming | YES |
Materials & construction
| Technical Construction | CLAMPED |
|---|---|
| Wetted Path Material | PVDF |
| Diaphragm Design | TRADITIONAL |
| Diaphragm Stroke | Full-Stroke |
| Valve Type | VALVE BALL |
| Valve Material | PTFE |
| O-ring / gasket material | SANTOPRENE |
| Outer Piston Materials | PVDF |
| Air Side Material | POLYPROPYLENE |
| Hardware Material | STAINLESS STEEL |
| Muffler Material | Plastic |
| Construction Details | 0150 |
Connections
| Nominal fluid connection size (in.) | 0.25 |
|---|---|
| Inlet Size (in.) | 0.25 |
| Inlet Orientation | CENTER SWIVEL |
| Discharge Size (in.) | 0.25 |
| Discharge Orientation | CENTER SWIVEL |
| Air Inlet Connection | 0.125" FNPT |
| Muffler Connection Type | INTEGRATED MUFFLER |
Dimensions & weight
| Overall Length (in.) | 5.2 |
|---|---|
| Overall Length With Muffler (in.) | 5.2 |
| Overall Width (in.) | 5.7 |
| Overall Height (in.) | 7.1 |
| Inlet Height (in.) | 1 |
| Inlet Horizontal Offset (in.) | 1.2 |
| Discharge Height (in.) | 5.5 |
| Discharge Horizontal Offset (in.) | 1.2 |
| Air Inlet Height (in.) | 2.9 |
| Shipping Weight (lbs) | 3.89 |
| Listed pump weight (kg) | 1.764504 |
Additional specifications
| Product family | ELECTRONIC CONTROLLED |
|---|---|
| Sub Series | Accu-Flo™ |
| Air-system service kit | NAK |
| Wetted-part service kit | NWK |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
