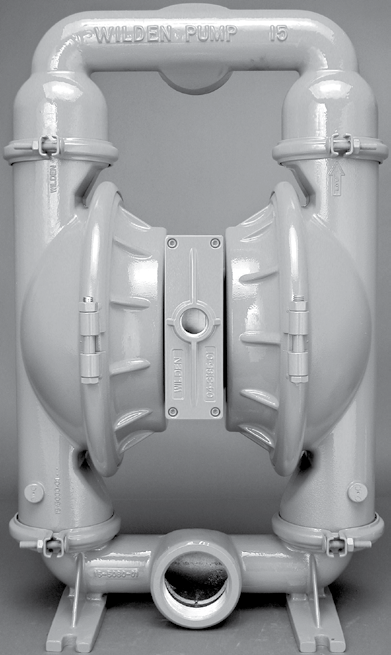

WILDEN S15-0140
XPX15/SSAAA/ZSS/FS/FS/0014WILDEN S15-0140 is a 3-inch air-operated diaphragm pump in the Pro-Flo X series. This configuration uses a stainless steel wetted housing and Hytrel® diaphragms. The complete ordering configuration is XPX15/SSAAA/ZSS/FS/FS/0014.
- Nominal port size
- 3 inch
- Maximum flow
- 919.86 L/min
- Wetted housing
- stainless steel
- Diaphragm material
- Hytrel®
Know the pump.
Construction & fluid path
The pump has clamped construction. Valve material: Hytrel®. Valve seat material: Hytrel.
Performance & operating point
The published maximum flow is 919.86 L/min. Maximum flow and maximum pressure are separate ratings. The operating flow depends on discharge pressure, the available air supply, fluid properties and the selected configuration.
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | WILDEN |
|---|---|
| Model / order number | S15-0140 |
| Series | Pro-Flo X |
| Full configuration | XPX15/SSAAA/ZSS/FS/FS/0014 |
| Nominal port size | 3 inch |
| Maximum flow | 919.86 L/min |
| Wetted housing | stainless steel |
| Diaphragm material | Hytrel® |
| Drive type | Pneumatic |
| Construction | Clamped |
| Valve material | Hytrel® |
| Valve seat material | Hytrel |
Performance
| Family maximum flow (gpm) | 243 |
|---|
Materials & construction
| Wetted path material | Stainless Steel |
|---|---|
| Construction code | SSAAA |
| Diaphragm code | ZSS |
| Valve / flap code | FS |
| Valve / flap material | Hytrel® |
| O-ring / gasket material | HYTREL |
| Outer piston material | Stainless steel |
Connections
| Nominal fluid connection size (in.) | 3 |
|---|
Additional specifications
| Product family | Pro Flo X |
|---|---|
| Seat / seal code | FS |
| Special option code | 0014 |
| Air-system service kit | 15-9988-99 |
| Wetted-part service kit | 15-9804-56-209 |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
