WILDEN S15-0123

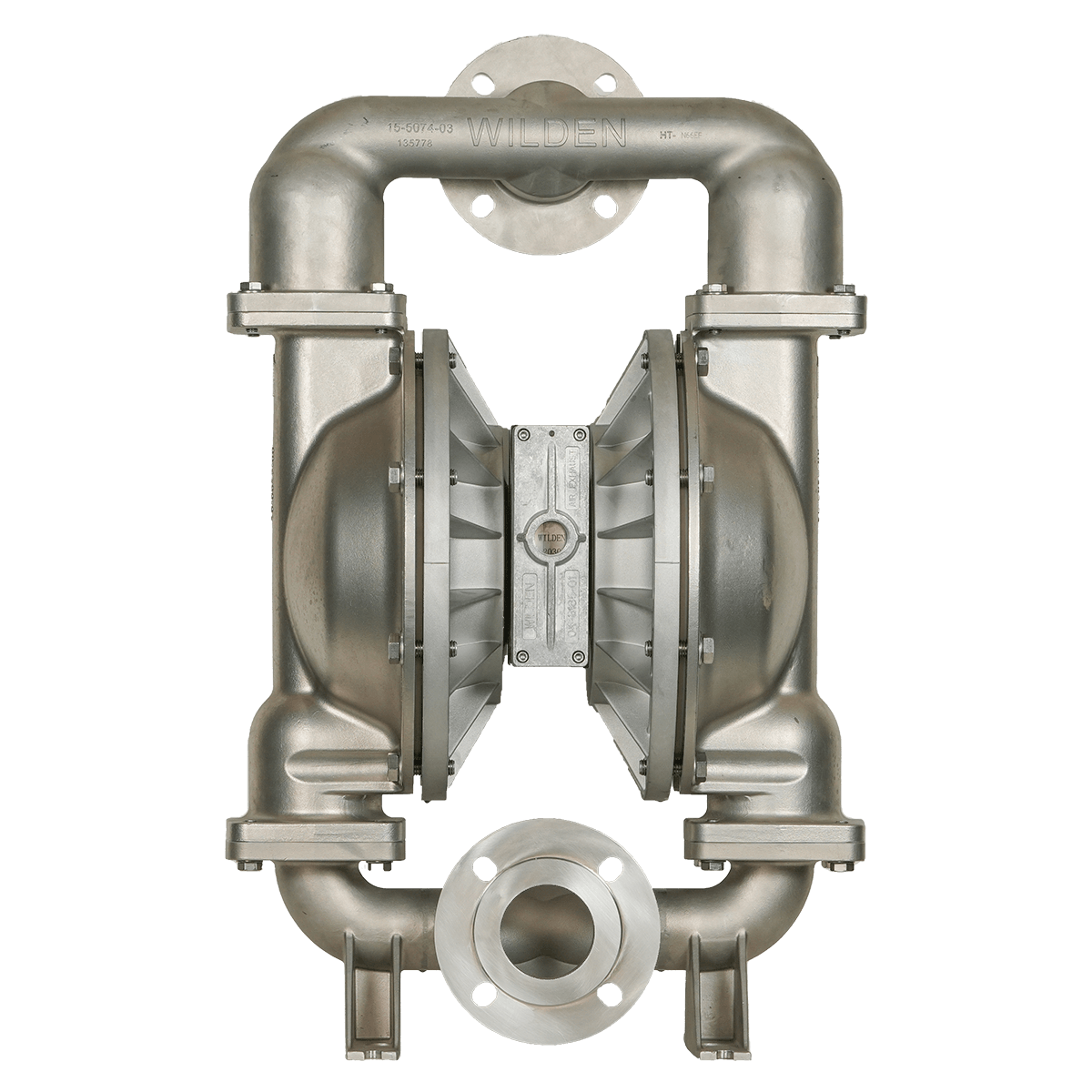

XPR1570/SSAAA/VTS/VT/VTWILDEN S15-0123 is a 3-inch air-operated diaphragm pump in the Pro-Flo R series. This configuration uses a stainless steel wetted housing and FKM diaphragms. The complete ordering configuration is XPR1570/SSAAA/VTS/VT/VT.
- Nominal port size
- 3 inch
- Maximum flow
- 908.5 L/min
- Wetted housing
- stainless steel
- Diaphragm material
- FKM
Know the pump.
Construction & fluid path
The pump has bolted construction. Valve material: FKM. Valve seat material: FKM.
Performance & operating point
The published maximum flow is 908.5 L/min. Maximum flow and maximum pressure are separate ratings. The operating flow depends on discharge pressure, the available air supply, fluid properties and the selected configuration.
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | WILDEN |
|---|---|
| Model / order number | S15-0123 |
| Series | Pro-Flo R |
| Full configuration | XPR1570/SSAAA/VTS/VT/VT |
| Nominal port size | 3 inch |
| Maximum flow | 908.5 L/min |
| Wetted housing | stainless steel |
| Diaphragm material | FKM |
| Drive type | Pneumatic |
| Construction | Bolted |
| Valve material | FKM |
| Valve seat material | FKM |
Performance
| Family maximum flow (gpm) | 240 |
|---|
Materials & construction
| Wetted path material | Stainless Steel |
|---|---|
| Construction code | SSAAA |
| Diaphragm code | VTS |
| Valve / flap code | VT |
| Valve / flap material | FKM |
| O-ring / gasket material | FKM |
| Outer piston material | Stainless steel |
Connections
| Nominal fluid connection size (in.) | 3 |
|---|
Additional specifications
| Product family | Pro-Flo R |
|---|---|
| Seat / seal code | VT |
| Air-system service kit | 15-9988-99 |
| Wetted-part service kit | NME |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
