WILDEN S02-0081

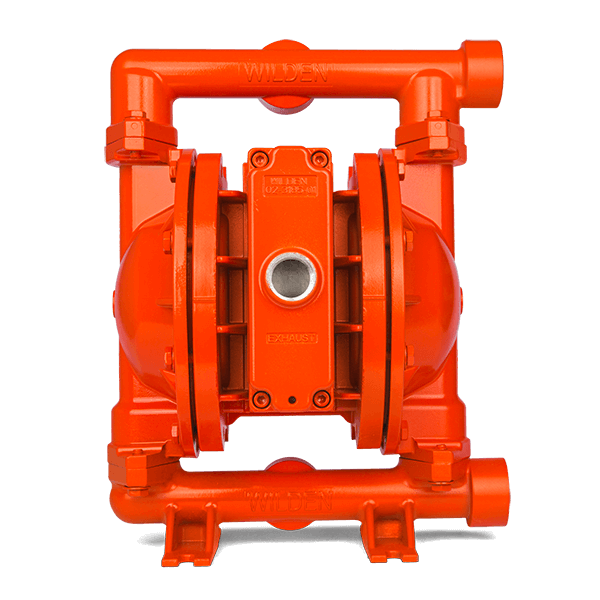

XPR260/AAAAA/NES/NE/ANE/0014WILDEN S02-0081 is a 1-inch air-operated diaphragm pump in the Pro-Flo R series. This configuration uses an aluminum wetted housing and neoprene diaphragms. The complete ordering configuration is XPR260/AAAAA/NES/NE/ANE/0014.
- Nominal port size
- 1 inch
- Maximum flow
- 181.7 L/min
- Wetted housing
- aluminum
- Diaphragm material
- neoprene
Know the pump.
Construction & fluid path
The pump has bolted construction. Valve material: neoprene. Valve seat material: aluminum.
Performance & operating point
The published maximum flow is 181.7 L/min. Maximum flow and maximum pressure are separate ratings. The operating flow depends on discharge pressure, the available air supply, fluid properties and the selected configuration.
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | WILDEN |
|---|---|
| Model / order number | S02-0081 |
| Series | Pro-Flo R |
| Full configuration | XPR260/AAAAA/NES/NE/ANE/0014 |
| Nominal port size | 1 inch |
| Maximum flow | 181.7 L/min |
| Wetted housing | aluminum |
| Diaphragm material | neoprene |
| Drive type | Pneumatic |
| Construction | Bolted |
| Valve material | neoprene |
| Valve seat material | aluminum |
Performance
| Family maximum flow (gpm) | 48 |
|---|
Materials & construction
| Wetted path material | Aluminum |
|---|---|
| Construction code | AAAAA |
| Diaphragm code | NES |
| Valve / flap code | NE |
| Valve / flap material | Neoprene |
| O-ring / gasket material | Neoprene |
| Outer piston material | Aluminum |
Connections
| Nominal fluid connection size (in.) | 1 |
|---|
Additional specifications
| Product family | Pro-Flo R |
|---|---|
| Seat / seal code | ANE |
| Special option code | 0014 |
| Air-system service kit | 02-9988-99 |
| Wetted-part service kit | NME |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
Make the right selection.
Share the fluid, required flow, discharge pressure and temperature with Kevin.
