WILDENTurbo-Flo Z
WILDEN S01-0011
Ordering configuration

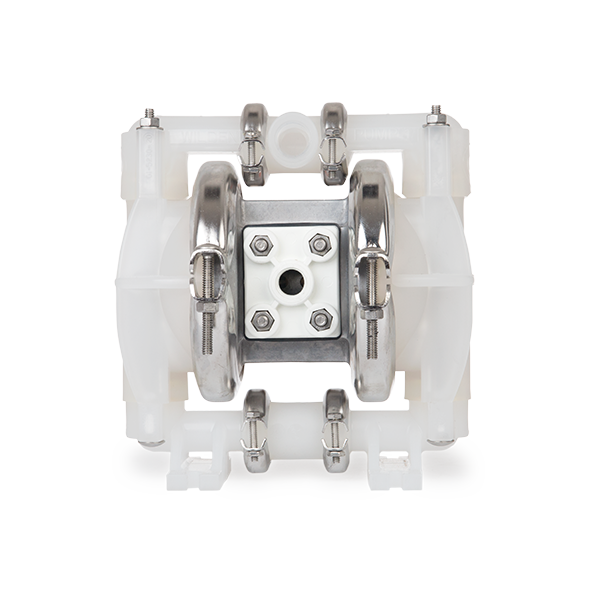

TZ1/PPAAB/WFS/WF/KWFWILDEN S01-0011 is a 0.5-inch air-operated diaphragm pump in the Turbo-Flo Z series. This configuration uses a polypropylene wetted housing and Santoprene® diaphragms. The complete ordering configuration is TZ1/PPAAB/WFS/WF/KWF.
- Nominal port size
- 0.5 inch
- Wetted housing
- polypropylene
- Diaphragm material
- Santoprene®
THE CONFIGURATION
Know the pump.
Construction & fluid path
The pump has clamped construction. Valve material: Santoprene®. Valve seat material: PVDF.
TECHNICAL DATA
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | WILDEN |
|---|---|
| Model / order number | S01-0011 |
| Series | Turbo-Flo Z |
| Full configuration | TZ1/PPAAB/WFS/WF/KWF |
| Nominal port size | 0.5 inch |
| Wetted housing | polypropylene |
| Diaphragm material | Santoprene® |
| Drive type | Pneumatic |
| Construction | Clamped |
| Valve material | Santoprene® |
| Valve seat material | PVDF |
Materials & construction
| Wetted path material | Polypropylene |
|---|---|
| Construction code | PPAAB |
| Diaphragm code | WFS |
| Valve / flap code | WF |
| Valve / flap material | Santoprene® |
| O-ring / gasket material | SANTOPRENE |
| Outer piston material | Polypropylene |
Connections
| Nominal fluid connection size (in.) | 0.5 |
|---|
Additional specifications
| Product family | Turbo-Flo Z |
|---|---|
| Seat / seal code | KWF |
| Air-system service kit | NAK |
| Wetted-part service kit | NME |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
