WILDEN 74-1002

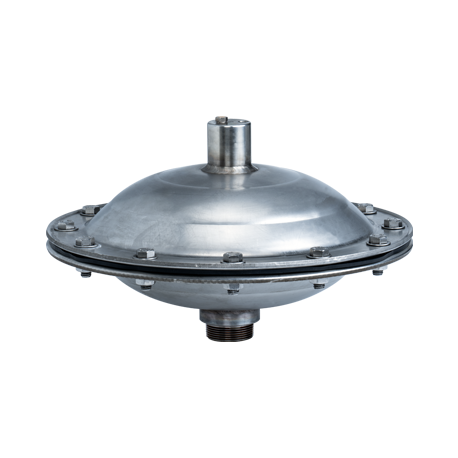

74-1002WILDEN 74-1002 is a surge dampener. The listed component material specification is stainless steel. The listed diaphragm material is PTFE w/Buna-N Backed, IPD.
- Component type
- Surge dampener
- Part number
- 74-1002
- Component material
- stainless steel
- Listed pump size
- ISD420
Know the component.
Product description
Equalizer® Surge Dampeners - Integrated SD (ISD) series metal compliment Wilden's® standard bolted air-operated double-diaphragm (AODD) pumps to deliver maximum process fluid containment. They are engineered to reduce fluid pressure and flow fluctuations that are inherent in AODD pumps, providing a smoother discharge flow. This allows the ISD Series to be an ideal solution for a wide range of applications, including, but not limited to, oil and gas, paints and coatings, and chemical. ISD Equalizers are also ATEX compliant Minimizes vibration Controls pipe hammer Enhances downstream instrumentation Increases pump efficiency Extends pump life and reduces noise Meets ATEX II 2 GD X requirements.
Component details
The listed component material specification is stainless steel. The listed diaphragm material is PTFE w/Buna-N Backed, IPD.
Fitment & identification
The listed nominal pump size is ISD420. Confirm the full pump model, component position and material specification against the installed assembly. Nominal pump size alone does not establish interchangeability.
Specifications at a glance.
Compare component details and identification before ordering.
Identification
| Brand | WILDEN |
|---|---|
| Part number | 74-1002 |
| Product description | Equalizer® Surge Dampeners - Integrated SD (ISD) series metal compliment Wilden's® standard bolted air-operated double-diaphragm (AODD) pumps to deliver maximum process fluid containment. They are engineered to reduce fluid pressure and flow fluctuations that are inherent in AODD pumps, providing a smoother discharge flow. This allows the ISD Series to be an ideal solution for a wide range of applications, including, but not limited to, oil and gas, paints and coatings, and chemical. ISD Equalizers are also ATEX compliant Minimizes vibration Controls pipe hammer Enhances downstream instrumentation Increases pump efficiency Extends pump life and reduces noise Meets ATEX II 2 GD X requirements |
| Component type | Surge dampener |
| Component material | stainless steel |
| Listed pump size | ISD420 |
Materials & construction
| Diaphragm material | PTFE w/Buna-N Backed, IPD |
|---|
Connections
| Connection standard | NPT |
|---|---|
| Connection type | NPT |
Additional specifications
| Nominal pump size (in.) | ISD420 |
|---|
Match the part number and full installed pump configuration before ordering.
Match it to your pump.
Send Kevin the pump nameplate and the component number for a configuration check.
