WILDEN 02-13049

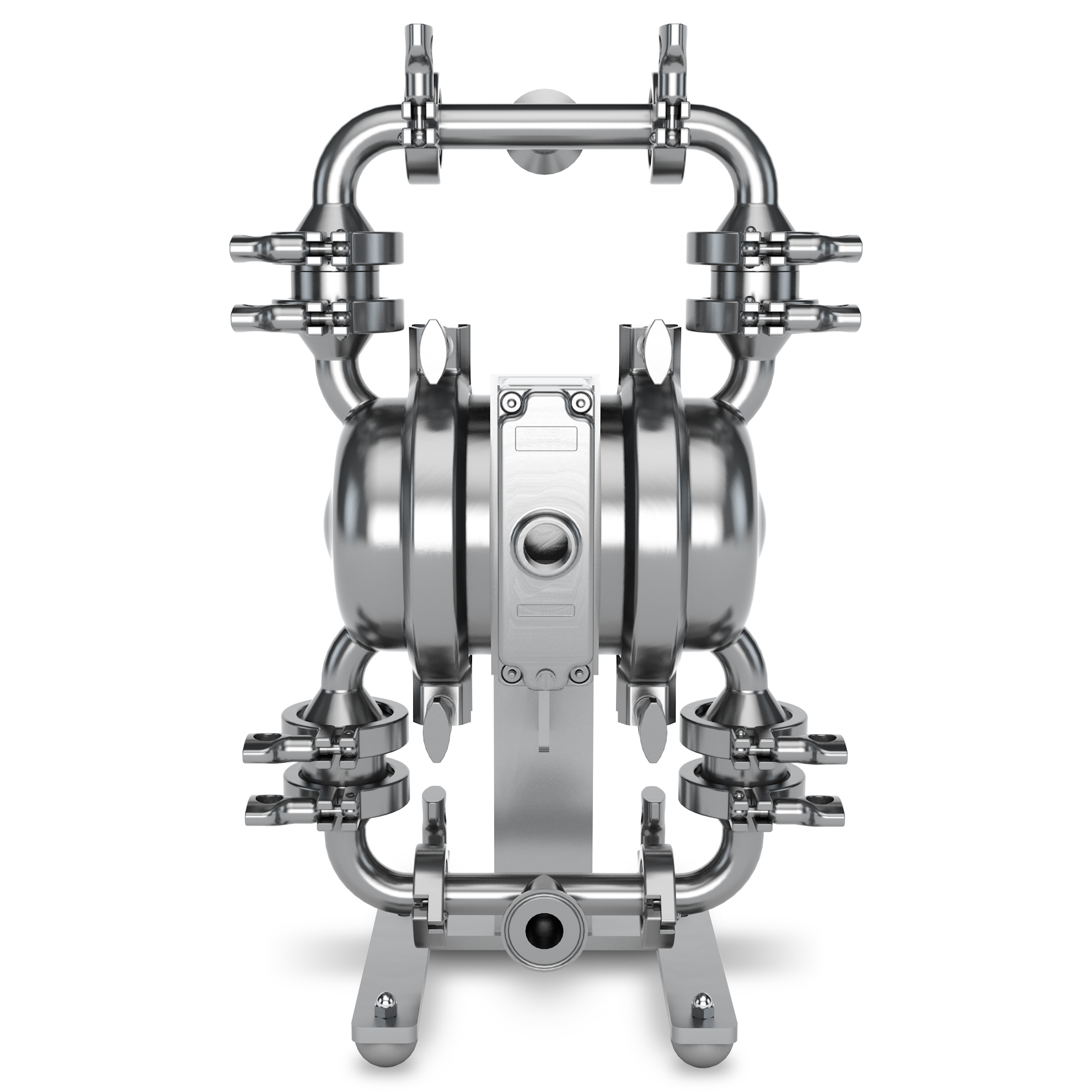

XPS2/SZNNN/FWL/FW/FE/0771WILDEN 02-13049 is a 1-inch air-operated diaphragm pump in the Pro-Flo® SHIFT series. This configuration uses a stainless steel wetted housing and Santoprene® diaphragms. The complete ordering configuration is XPS2/SZNNN/FWL/FW/FE/0771.
- Nominal port size
- 1 inch
- Maximum flow
- 31 US gpm
- Wetted housing
- stainless steel
- Diaphragm material
- Santoprene®
Know the pump.
Construction & fluid path
The pump has clamped construction. Fluid connection specification: TRI-CLAMP TRI-CLAMP. Check ball material: SANITARY Santoprene®. Valve seat material: SANITARY EPDM.
Performance & operating point
The published maximum flow is 31 US gpm. The listed maximum working pressure is 120 psig. Maximum flow and maximum pressure are separate ratings. The operating flow depends on discharge pressure, the available air supply, fluid properties and the selected configuration.
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | WILDEN |
|---|---|
| Model / order number | 02-13049 |
| Series | Pro-Flo® SHIFT |
| Full configuration | XPS2/SZNNN/FWL/FW/FE/0771 |
| Nominal port size | 1 inch |
| Maximum flow | 31 US gpm |
| Wetted housing | stainless steel |
| Diaphragm material | Santoprene® |
| Drive type | Pneumatic |
| Working pressure | 120 psig |
| Construction | Clamped |
| Connection standard | TRI-CLAMP |
| Connection type | TRI-CLAMP |
| Check ball material | SANITARY Santoprene® |
| Valve seat material | SANITARY EPDM |
Performance
| Max Flow Rate (gpm) | 31 |
|---|---|
| Maximum Allowable Operating Pressure (psig) | 120 |
| Max Air Pressure (psig) | 120 |
| Max Diameter Solids (in.) | 0.13 |
| Max Suction Lift Dry (ft.) | 8 |
| Min Operating Temperature (°F) | -40 |
| Max Operating Temperature (°F) | 225 |
| Max Viscosity (cP) | 125000 |
| Displacement Per Stroke (gal) | 0.07 |
| Self Priming | YES |
Materials & construction
| Technical Construction | CLAMPED |
|---|---|
| Wetted Path Material | STAINLESS STEEL |
| Diaphragm Design | IPD SANITARY |
| Diaphragm Stroke | Full-Stroke |
| Valve Type | VALVE BALL |
| Valve Material | SANITARY Santoprene® |
| O-ring / gasket material | SANITARY EPDM |
| Outer Piston Materials | NO OUTER PISTON |
| Air Side Material | ALUMINUM|NICKEL PLATED |
| Hardware Material | STAINLESS STEEL |
| Muffler Material | Aluminum |
| Construction Details | 0771 |
Connections
| Nominal fluid connection size (in.) | 1 |
|---|---|
| Inlet Size (in.) | 1 |
| Inlet Orientation | CENTER HORIZONTAL BACK |
| Discharge Size (in.) | 1 |
| Discharge Orientation | CENTER HORIZONTAL FRONT |
Dimensions & weight
| Shipping Weight (lbs) | 80 |
|---|
Additional specifications
| Product family | HYGENIC/FDA |
|---|
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
