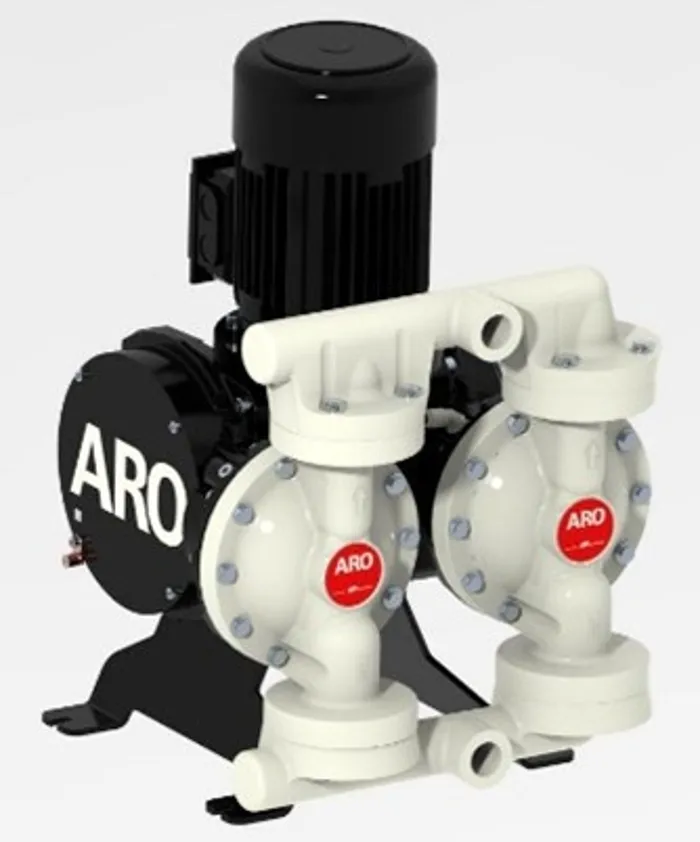

ARO E2P10-XXXXX-AX-XXA / E2P10-XXXXX-BX-XXA / E2P10-XXXXX-CX-XXA — 1 inch non-metallic family
E2P10-XXXXX-AX-XXA / E2P10-XXXXX-BX-XXA / E2P10-XXXXX-CX-XXAARO E2P10-XXXXX-AX-XXA / E2P10-XXXXX-BX-XXA / E2P10-XXXXX-CX-XXA is a 1-inch electric double diaphragm pump family in the EVO 200 series. Wetted housing options include Polypropylene / PVDF.
- Nominal port size
- 1 inch
- Family maximum flow
- 147.63 L/min
- Housing options
- Polypropylene / PVDF
Know the pump.
Construction & fluid path
Listed fluid connection options: ANSI / DIN flange.
Performance & operating point
The published family maximum flow is 147.63 L/min. Maximum flow and maximum pressure are separate ratings. The operating flow depends on discharge pressure, the available drive power, fluid properties and the selected configuration.
Configuration selection
This record describes a product family or model pattern. Select the complete ordering code and confirm its wetted materials, connections and operating limits before specifying a pump.
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | ARO |
|---|---|
| Model / order number | E2P10-XXXXX-AX-XXA / E2P10-XXXXX-BX-XXA / E2P10-XXXXX-CX-XXA |
| Series | EVO 200 |
| Nominal port size | 1 inch |
| Family maximum flow | 147.63 L/min |
| Housing options | Polypropylene / PVDF |
| Drive type | Electric |
| Connection standard | ANSI / DIN flange |
Performance
| Maximum Flow Rate (flood inlet) | 39 GPM (149 l/min) |
|---|---|
| Displacement Per Cycle | 0.17 gallons (0.64 liters) |
| Inlet Pressure | 25 PSIG - 50 PSIG (1,7 – 3,4 bar) |
| Maximum Average Working Pressure | 50 PSIG - 90 PSIG (3,4 – 6,2 bar) |
| Suspended Solids Maximum Diameter | 1/8” diameter (3.3 mm) |
| Wet suction lift | 32.1 ft |
| Dry suction lift | 11.3 ft |
Materials & construction
| Wetted body options | Polypropylene / PVDF |
|---|---|
| Wetted-body options | Polypropylene / PVDF |
| Diaphragm / Ball Check Size | 1" (25.4 mm) equivalent |
Connections
| Fluid Inlet / Outlet Connection | 1 - 11-1/2 NPTF-2 1 - 11 BSP 1"" ANSI / DIN Flange / Center |
|---|
Dimensions & weight
| Weight | Polypropylene Pump: 176 lbs (79 8 kg) PVDF Pump: 184 lbs (83 5 kg) |
|---|
Additional specifications
| Nominal port size | 1 in |
|---|---|
| Pump architecture | Electric double diaphragm |
| Pump duty | Ordinary duty; contact ARO for hazardous-duty applications |
| Mounting Dimension | QTY (4) .40 in (10.3 mm) Wide Slot on 10.31 in (262 mm) x 11.45 in (291 mm) Pattern (See Operator's Manual) |
| Installation dimensions | Use the selected motor and pump dimensional drawing. Height varies with IEC / NEMA motor selection. |
| Motor rating | 2 hp (1.5 kW), 4 pole; three phase |
| Motor voltage options | 60 Hz: 230 / 460 VAC; 50 Hz: 200 / 400 VAC; ±10% |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
