AROSpecialty Series
ARO 650715-C — 1 inch metallic family
Model pattern

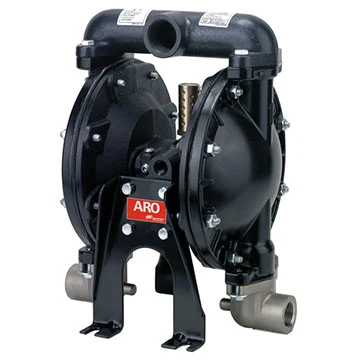

650715-CARO 650715-C is a 1-inch air-operated double diaphragm pump family in the Specialty Series. Wetted housing options include aluminum.
- Nominal port size
- 1 inch
- Housing options
- aluminum
THE CONFIGURATION
Know the pump.
Construction & fluid path
Listed fluid connection options: NPT.
Configuration selection
This record describes a product family or model pattern. Select the complete ordering code and confirm its wetted materials, connections and operating limits before specifying a pump.
TECHNICAL DATA
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | ARO |
|---|---|
| Model / order number | 650715-C |
| Series | Specialty Series |
| Nominal port size | 1 inch |
| Housing options | aluminum |
| Drive type | Pneumatic |
| Connection standard | NPT |
Performance
| Maximum Flow | 35 g.p.m. (133 l.p.m.) |
|---|
Materials & construction
| Wetted body options | Aluminum |
|---|---|
| Manifold Material | Aluminum |
| Diaphragm/O-Ring Material | Nitrile |
Connections
| Air Inlet | 1/4" NPT/F |
|---|---|
| Fluid Outlet | 1" NPT/F |
Additional specifications
| Nominal port size | 1 in |
|---|---|
| Pump architecture | Air-operated double diaphragm |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
