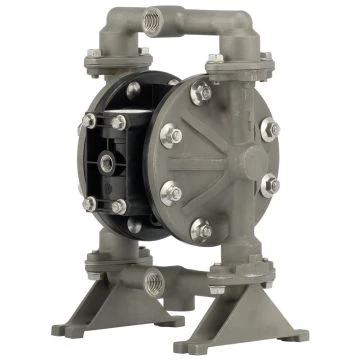

ARO PD05X-XXS-XXX-B — 0.5 inch metallic family
PD05X-XXS-XXX-BARO PD05X-XXS-XXX-B is a 0.5-inch air-operated double diaphragm pump family in the Compact Series. Wetted housing options include Aluminum / Stainless Steel. Diaphragm options include Santoprene PTFE w/ Santoprene backer Hytrel Polyurethane Nitrile Viton.
- Nominal port size
- 0.5 inch
- Family maximum flow
- 12.0 gpm (45.4 lpm)
- Housing options
- Aluminum / Stainless Steel
- Diaphragm options
- Santoprene PTFE w/ Santoprene backer Hytrel Polyurethane Nitrile Viton
Know the pump.
Construction & fluid path
Listed fluid connection options: NPT.
Performance & operating point
The published family maximum flow is 12.0 gpm (45.4 lpm). The listed maximum working pressure is 100 psig (6.9 bar). Maximum flow and maximum pressure are separate ratings. The operating flow depends on discharge pressure, the available air supply, fluid properties and the selected configuration.
Configuration selection
This record describes a product family or model pattern. Select the complete ordering code and confirm its wetted materials, connections and operating limits before specifying a pump.
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | ARO |
|---|---|
| Model / order number | PD05X-XXS-XXX-B |
| Series | Compact Series |
| Nominal port size | 0.5 inch |
| Family maximum flow | 12.0 gpm (45.4 lpm) |
| Housing options | Aluminum / Stainless Steel |
| Diaphragm options | Santoprene PTFE w/ Santoprene backer Hytrel Polyurethane Nitrile Viton |
| Drive type | Pneumatic |
| Working pressure | 100 psig (6.9 bar) |
| Connection standard | NPT |
Performance
| Ratio | 1:1 |
|---|---|
| Maximum flow rate (flooded inlet) | 12.0 gpm (45.4 lpm) |
| Displacement per cycle @ 100 psig | 0.039 gal.(0.15 lit.) |
| Maximum outlet pressure | 100 psig (6.9 bar) |
| Maximum particle size | 3/32” dia. (2.4 mm) |
| Maximum air inlet pressure | 100 psig (6.9 bar) |
| Maximum material inlet pressure | 10 psig (0.69 bar) |
Materials & construction
| Wetted body options | Aluminum / Stainless Steel |
|---|
Connections
| Air Inlet | (Female) 1/4 - 18 N.P.T.F. - 1 |
|---|---|
| Fluid Inlet/Outlet | 1/2 - 14 N.P.T.F. - 1 |
Dimensions & weight
| Weight by configuration | PX05A-XAS: 10.36 lb (4.70 kg); PX05A-XSS: 16.57 lb (7.52 kg); PX05R-XAS: 8.04 lb (3.65 kg); PX05R-XSS: 14.25 lb (6.46 kg) |
|---|
Additional specifications
| Nominal port size | 0.5 in |
|---|---|
| Pump architecture | Air-operated double diaphragm |
| Muffler | Integral, Included |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
