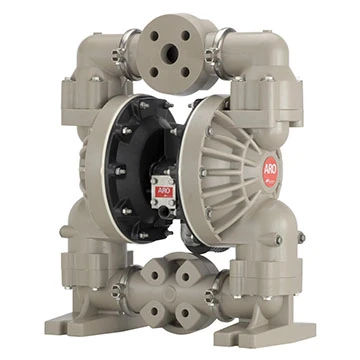

ARO 6661XX-XXX-C — 1.5 inch non-metallic family
6661XX-XXX-CARO 6661XX-XXX-C is a 1.5-inch air-operated double diaphragm pump family in the PRO Series. Wetted housing options include Polypropylene / PVDF. Diaphragm options include Viton PTFE w/ Santoprene backer Hytrel Santoprene Nitrile Neoprene E.P.R..
- Nominal port size
- 1.5 inch
- Family maximum flow
- 100 gpm (378.5 lpm)
- Housing options
- Polypropylene / PVDF
- Diaphragm options
- Viton PTFE w/ Santoprene backer Hytrel Santoprene Nitrile Neoprene E.P.R.
Know the pump.
Construction & fluid path
Listed fluid connection options: ANSI / DIN flange.
Performance & operating point
The published family maximum flow is 100 gpm (378.5 lpm). The listed maximum working pressure is 120 psig (8.3 bar). Maximum flow and maximum pressure are separate ratings. The operating flow depends on discharge pressure, the available air supply, fluid properties and the selected configuration.
Configuration selection
This record describes a product family or model pattern. Select the complete ordering code and confirm its wetted materials, connections and operating limits before specifying a pump.
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | ARO |
|---|---|
| Model / order number | 6661XX-XXX-C |
| Series | PRO Series |
| Nominal port size | 1.5 inch |
| Family maximum flow | 100 gpm (378.5 lpm) |
| Housing options | Polypropylene / PVDF |
| Diaphragm options | Viton PTFE w/ Santoprene backer Hytrel Santoprene Nitrile Neoprene E.P.R. |
| Drive type | Pneumatic |
| Working pressure | 120 psig (8.3 bar) |
| Connection standard | ANSI / DIN flange |
Performance
| Ratio | 1:1 |
|---|---|
| Maximum flow rate (flooded inlet) | 100 gpm (378.5 lpm) |
| Displacement per cycle | Standard Diaphragm 0.67 gallons (2.54 liters) Composite PTFE Diaphragm 0.43 gallons (1.63 liters) |
| Maximum outlet pressure | 120 psig (8.3 bar) |
| Maximum particle size | 1/4” dia. (6.4 mm) |
| Maximum dry suction lift | 14 ft (4.27 m) |
| Sound Level | 70 PSI (4.8 bar) 60 Cycles/Min 77.7 db(A) |
| Maximum air inlet pressure | 120 psig (8.3 bar) |
| Maximum material inlet pressure | 10 psig (0.69 bar) |
Materials & construction
| Wetted body options | Polypropylene / PVDF |
|---|
Connections
| Air Inlet | (Female) 1/2-14 NPTF |
|---|---|
| Fluid Inlet/Outlet | 1-1/2” ANSI Flange |
Dimensions & weight
| Weight | Polypropylene 62 lbs (28.1 kg) PVDF (Kynar®) 92 lbs (41.7 kg) Note: Add 23 lbs (10.4 kgs) for cast iron air motor section. |
|---|
Additional specifications
| Nominal port size | 1.5 in |
|---|---|
| Pump architecture | Air-operated double diaphragm |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
