ALL-FLO A025-SPK-TTKT-Y70

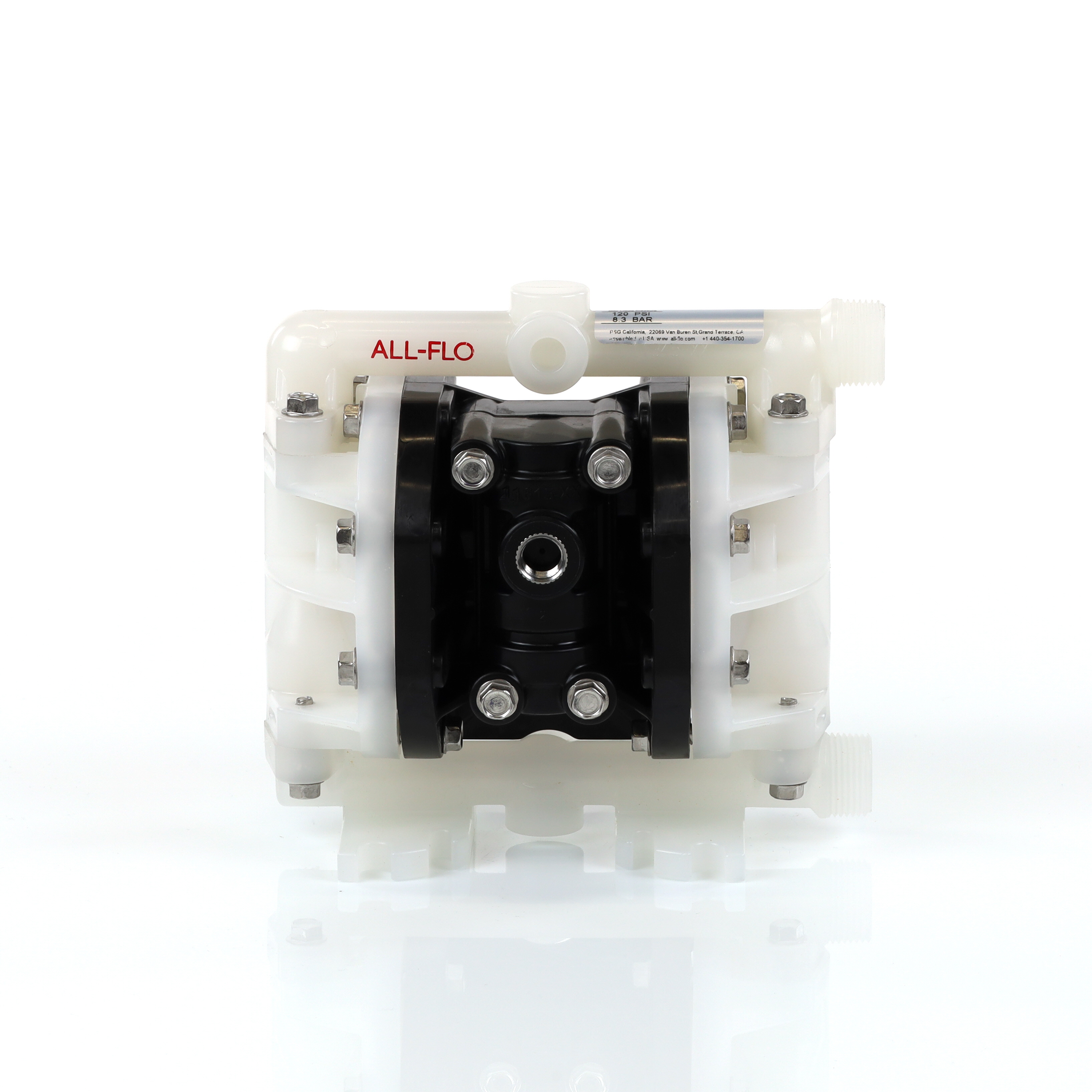

A025-SPK-TTKT-Y70ALL-FLO A025-SPK-TTKT-Y70 is a 0.25-inch air-operated diaphragm pump in the A Series. This configuration uses a PVDF wetted housing and PTFE diaphragms.
- Nominal port size
- 0.25 inch
- Maximum flow
- 5.7 US gpm
- Wetted housing
- PVDF
- Diaphragm material
- PTFE
Know the pump.
Construction & fluid path
The pump has bolted construction. Fluid connection specification: FNPS (FNPT/FBSP) threaded. Check ball material: PTFE. Valve seat material: PVDF.
Performance & operating point
The published maximum flow is 5.7 US gpm. The listed maximum working pressure is 120 psig. Maximum flow and maximum pressure are separate ratings. The operating flow depends on discharge pressure, the available air supply, fluid properties and the selected configuration.
Specifications at a glance.
Review materials, connections and operating limits for your duty point.
Identification
| Brand | ALL-FLO |
|---|---|
| Model / order number | A025-SPK-TTKT-Y70 |
| Series | A Series |
| Nominal port size | 0.25 inch |
| Maximum flow | 5.7 US gpm |
| Wetted housing | PVDF |
| Diaphragm material | PTFE |
| Drive type | Pneumatic |
| Working pressure | 120 psig |
| Construction | Bolted |
| Connection standard | FNPS (FNPT/FBSP) |
| Connection type | Threaded |
| Check ball material | PTFE |
| Valve seat material | PVDF |
Performance
| Max Flow Rate (gpm) | 5.7 |
|---|---|
| Maximum Allowable Operating Pressure (psig) | 120 |
| Max Air Pressure (psig) | 120 |
| Max Diameter Solids (in.) | 0.06 |
| Max Suction Lift Dry (ft.) | 14 |
| Min Operating Temperature (°F) | 40 |
| Max Suction Lift Wet (ft.) | 28 |
| Max Operating Temperature (°F) | 220 |
| Max Viscosity (cP) | 25185 |
| Displacement Per Stroke (gal) | 0.0105 |
| Self Priming | YES |
Materials & construction
| Technical Construction | BOLTED |
|---|---|
| Wetted Path Material | PVDF |
| Diaphragm Design | TRADITIONAL |
| Diaphragm Stroke | Full-Stroke |
| Valve Type | BALL |
| Valve Material | PTFE |
| O-ring / gasket material | PTFE |
| Outer Piston Materials | PVDF |
| Air Side Material | POLYPROPYLENE |
| Hardware Material | SS |
| Muffler Material | PLASTIC |
Connections
| Nominal fluid connection size (in.) | 0.25 |
|---|---|
| Inlet Size (in.) | 0.25 |
| Inlet Orientation | SIDE LEFT |
| Discharge Size (in.) | 0.25 |
| Discharge Orientation | SIDE LEFT |
| Air Inlet Connection | 1/4" FNPT |
| Muffler Connection Type | 1/4" FNPT |
Dimensions & weight
| Overall Length (in.) | 4.6 |
|---|---|
| Overall Length With Muffler (in.) | 4.8 |
| Overall Width (in.) | 7.3 |
| Overall Height (in.) | 6.8 |
| Inlet Height (in.) | 0.8 |
| Discharge Height (in.) | 6.1 |
| Air Inlet Height (in.) | 4.1 |
| Muffler Connection Height (in.) | 4.1 |
| Shipping Weight (lbs) | 4 |
| Shipping Dimensions | 11-1/4"X7-3/4"X9-1/2" |
Maximum flow and maximum pressure are separate ratings; they do not describe one simultaneous operating point.
